Operate index diagrams

The following index diagrams show Camunda Exporter indices for Operate.

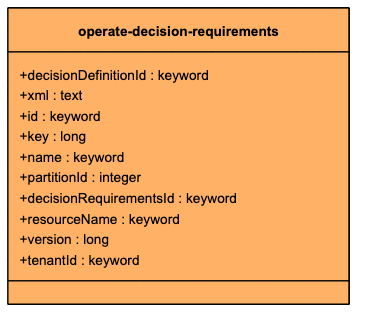

operate-decision-requirements​

diagram

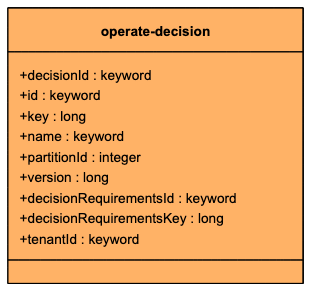

operate-decision​

diagram

operate-import-position​

diagram

operate-metric​

diagram

operate-migration-steps-repository​

diagram

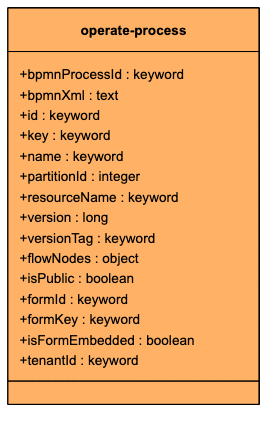

operate-process​

diagram

operate-user​

diagram

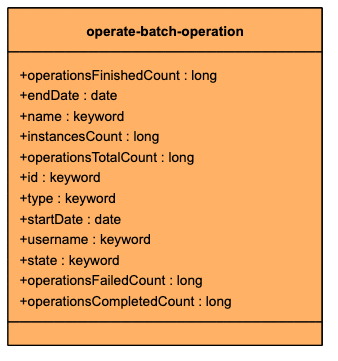

operate-batch-operation​

diagram

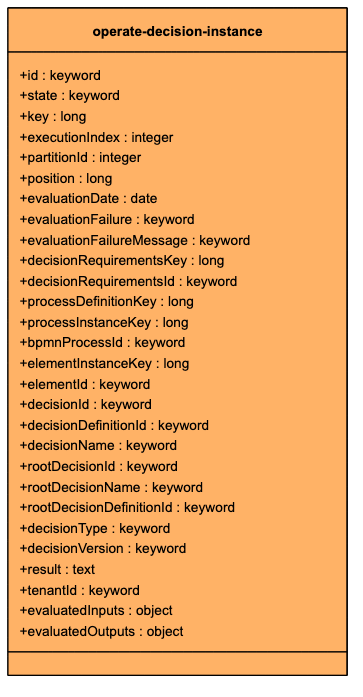

operate-decision-instance​

diagram

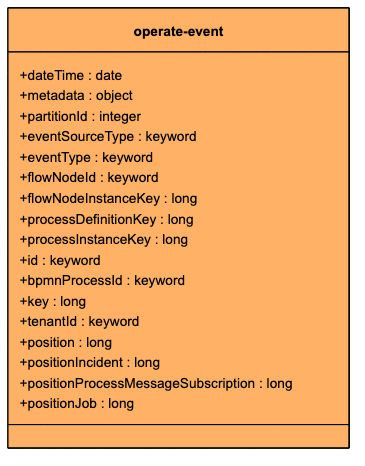

operate-event​

diagram

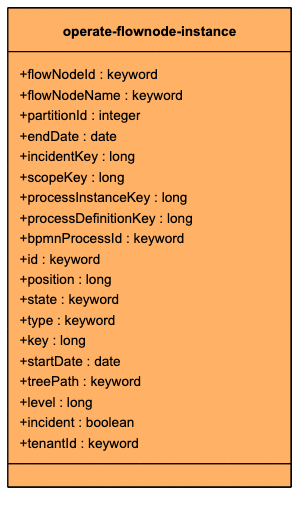

operate-flownode-instance​

diagram

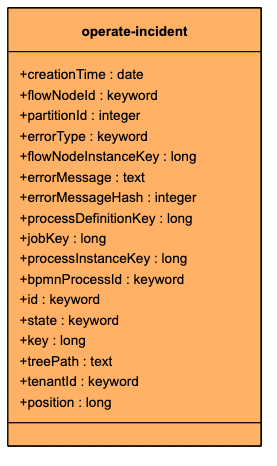

operate-incident​

diagram

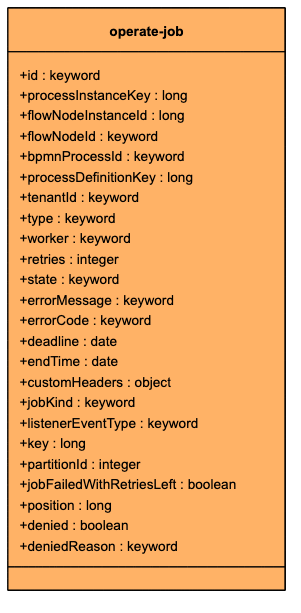

operate-job​

diagram

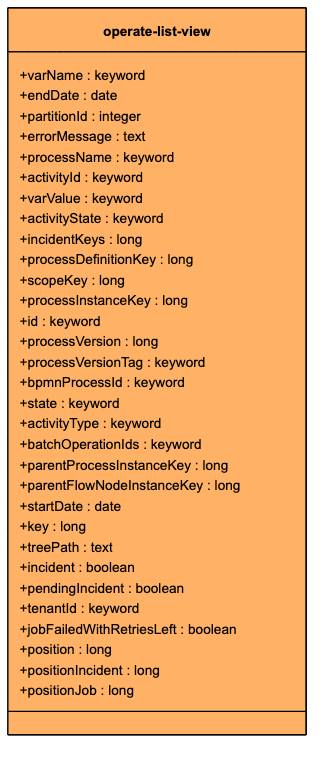

operate-list-view​

diagram diagram

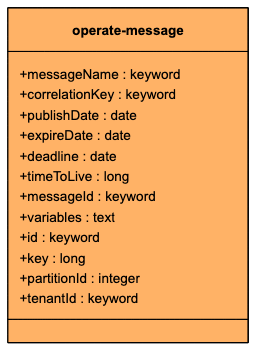

operate-message​

diagram

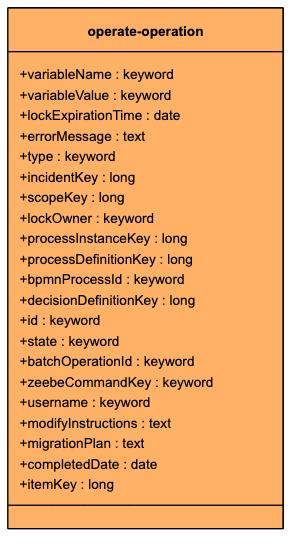

operate-operation​

diagram

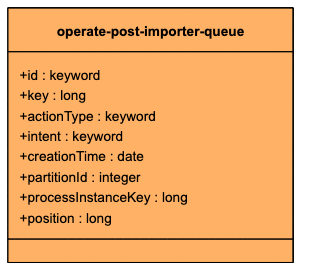

operate-post-importer-queue​

diagram

operate-sequence-flow​

diagram

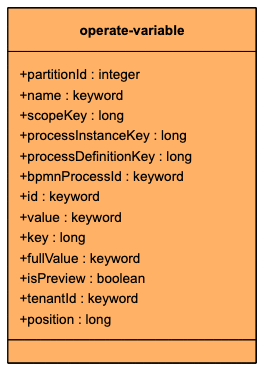

operate-variable​

diagram
